Drawn Wire
Drawn Aluminium Wire

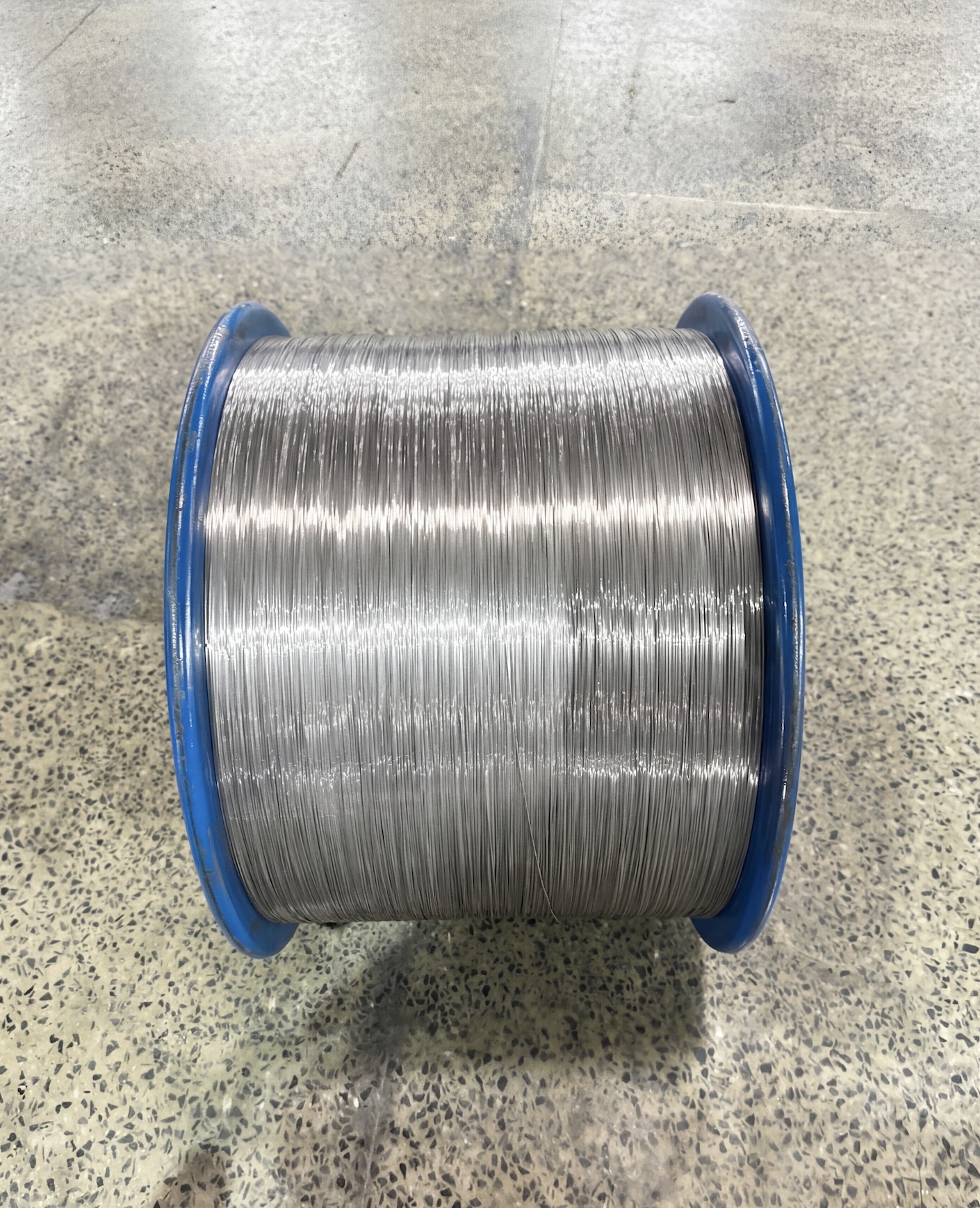

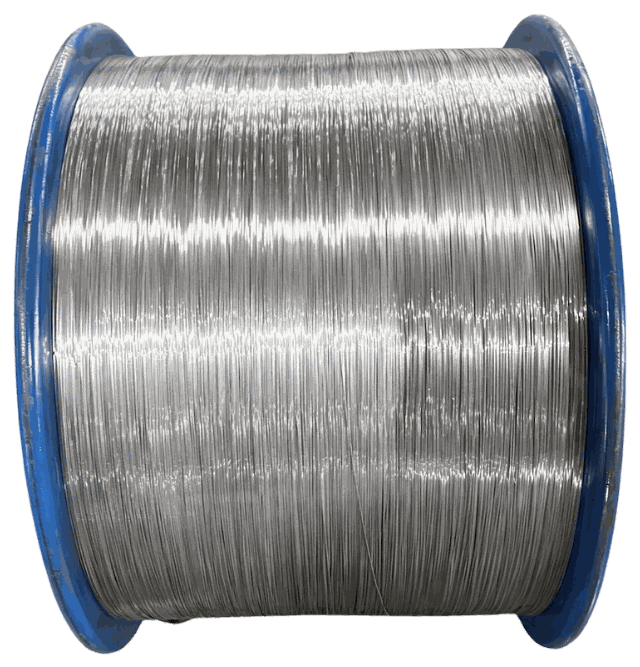

EC-grade aluminium wire from Al 1370 alloy (99.7% Al min.), available in annealed through hard-drawn H19 tempers from 0.371 to 3.25 mm diameter. Conductivity of 61.0% IACS or higher with tensile strength up to 186 MPa in H19 temper. Certified to ASTM B230/B609 and IEC 60228 for overhead conductor stranding, cable conductors, and winding applications.
Why Universal Metals
Why Source Drawn Aluminium Wire from Universal Metals
Full Temper Range, One Manufacturer
Al 1370 from annealed (O) through hard-drawn H19 temper. The complete range from flexible cable conductor to overhead transmission wire, all from a single certified manufacturer.
Fine Aluminium Wire from 0.371 mm
Available from 0.371 mm for winding and transformer applications. Most overhead conductor manufacturers start at 1.25 mm, so this range also serves customers who need fine-gauge aluminium wire.
ASTM B230 / IEC 60889 for Overhead Applications
H19 hard-drawn wire from 1.25 to 3.25 mm meets the tensile strength and conductivity requirements for AAC, ACSR, and AAAC overhead conductor stranding, backed by full material certification per ASTM B230 and IEC 60889.
Get in Touch
Let's Discuss Your Requirements
Whether you need annealed wire for flexible cable conductors, H14 for stranded building wire, or H19 for overhead conductor stranding in AAC or ACSR, our technical team will specify the right temper, diameter, and reel configuration for your production line.
